1 Statics

Statics is the branch of mechanics that analyzes bodies in equilibrium under the action of forces. This chapter examines cases where forces are in balance and presents methods for calculating resultant forces and their associated moments.

1.1 Space Diagrams

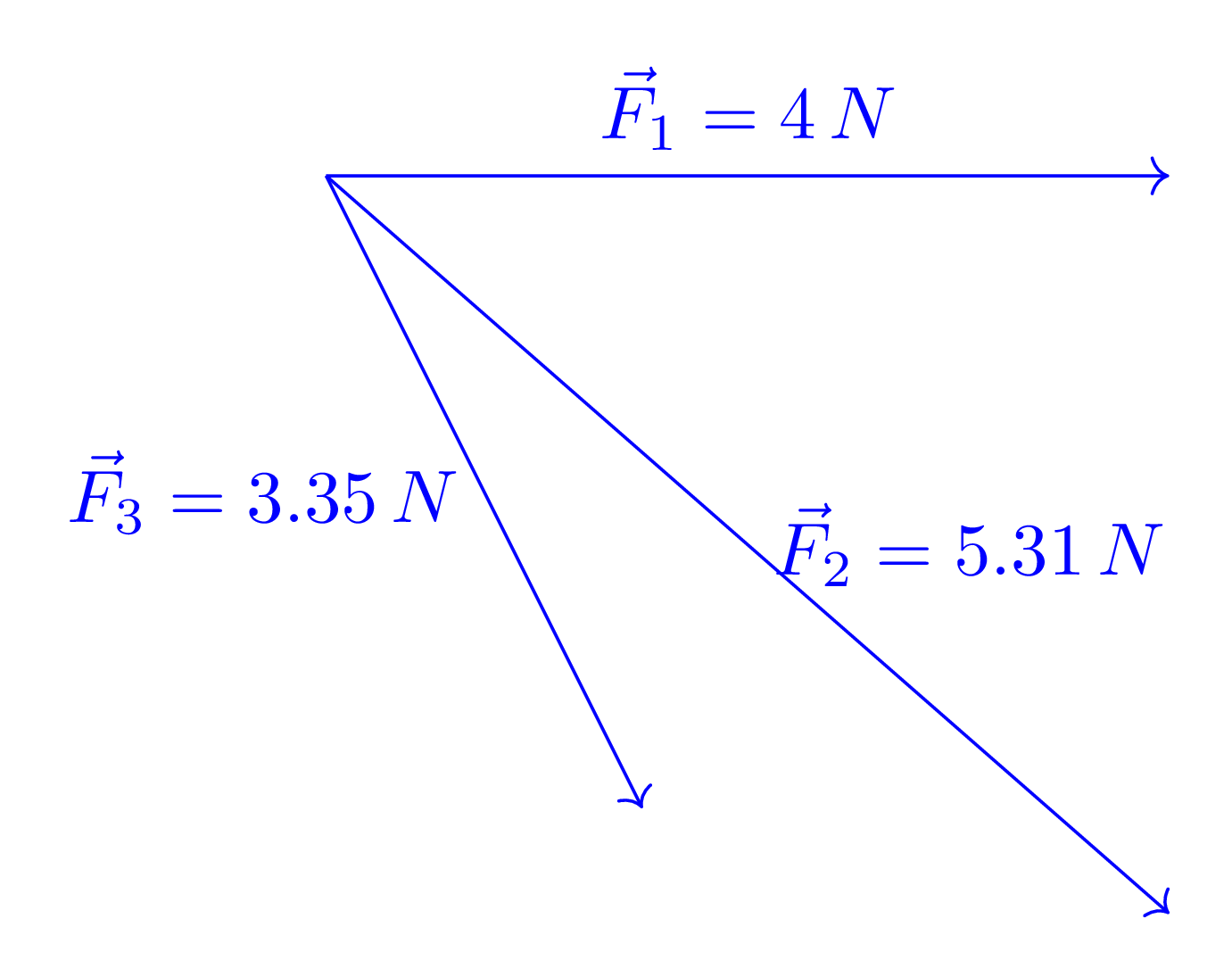

A space diagram illustrates the geometry of the system and the applied forces.

1.2 Vector Diagrams

A vector diagram (or force polygon) is a scaled graphical construction in which force vectors are placed head-to-tail in succession. It is used to determine the resultant of a system of forces through vector addition, as well as to resolve equilibrium problems when the polygon closes.

1.2.1 Resultant

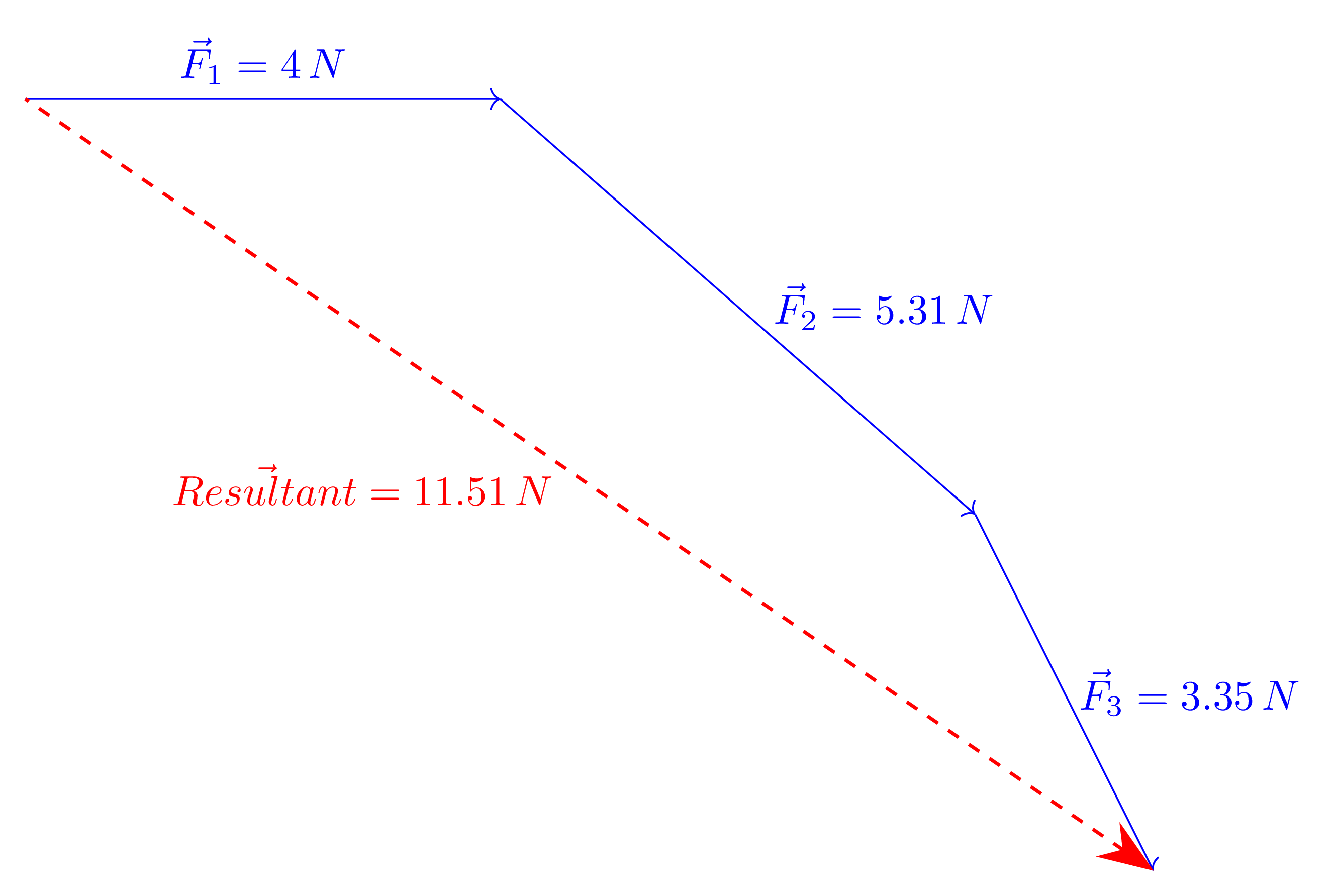

The resultant is a single force that has exactly the same effect on an object as all the original forces acting together. It is found by adding the forces vectorially taking into account both their magnitude and direction. The resultant gives the overall direction and magnitude of the combined forces as shown in Figure 1.2.

1.2.2 Equilibrium

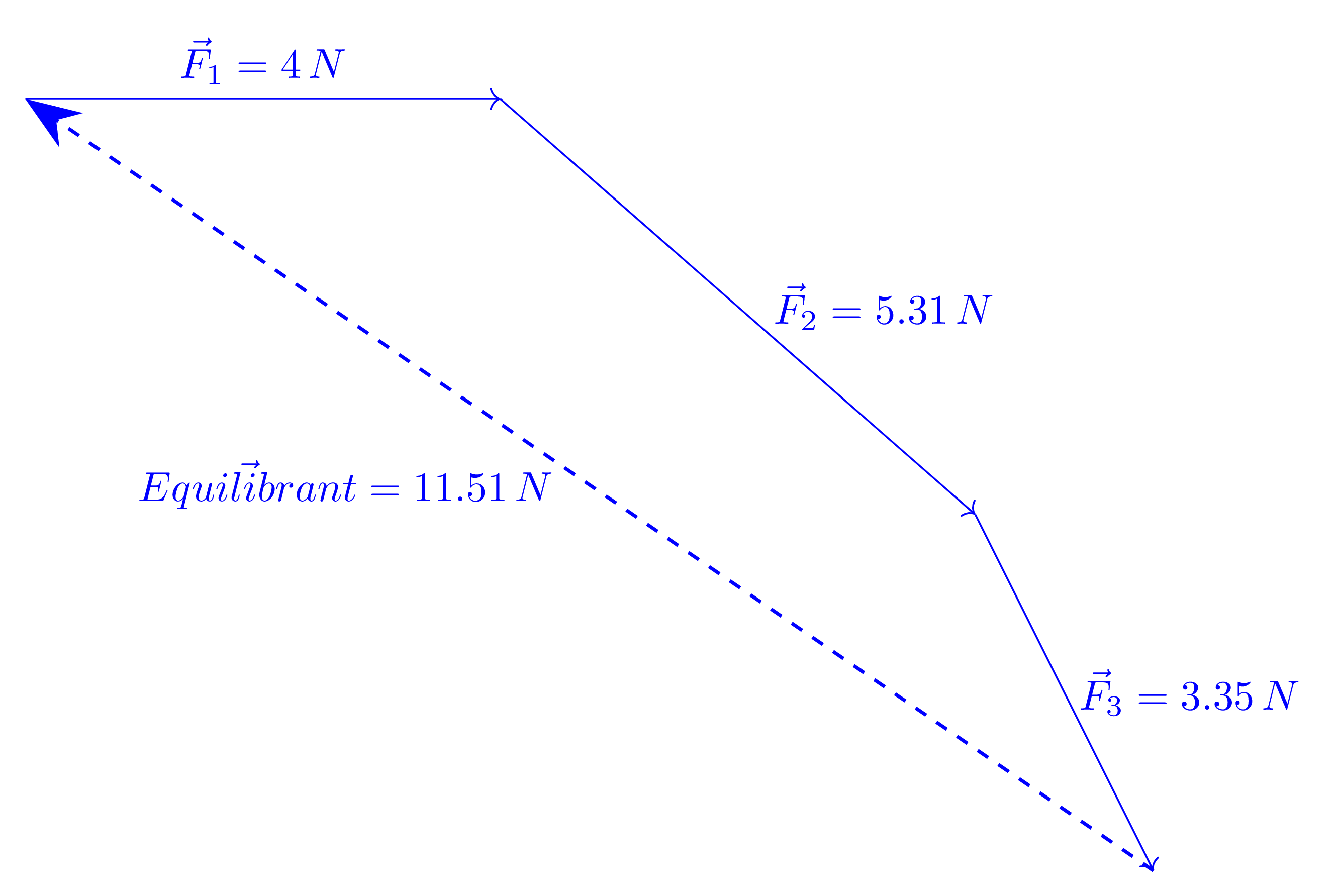

Equilibrium of an object occurs when all the forces acting on it are balanced, so the object remains at rest or moves at a constant speed in a straight line. In equilibrium, as shown in Figure 1.3, there is no net force or acceleration, meaning the object is in a stable state without any change in its motion.

1.3 Conditions of Equilibrium

Net force must be zero:

\[ \sum_{k} \vec{F}_{k} = \vec{0} \tag{1.1}\]

Net torque must be zero:

\[ \sum_{k} \vec{\tau}_{k} = \vec{0} \tag{1.2}\]

1.4 Cosine Rule

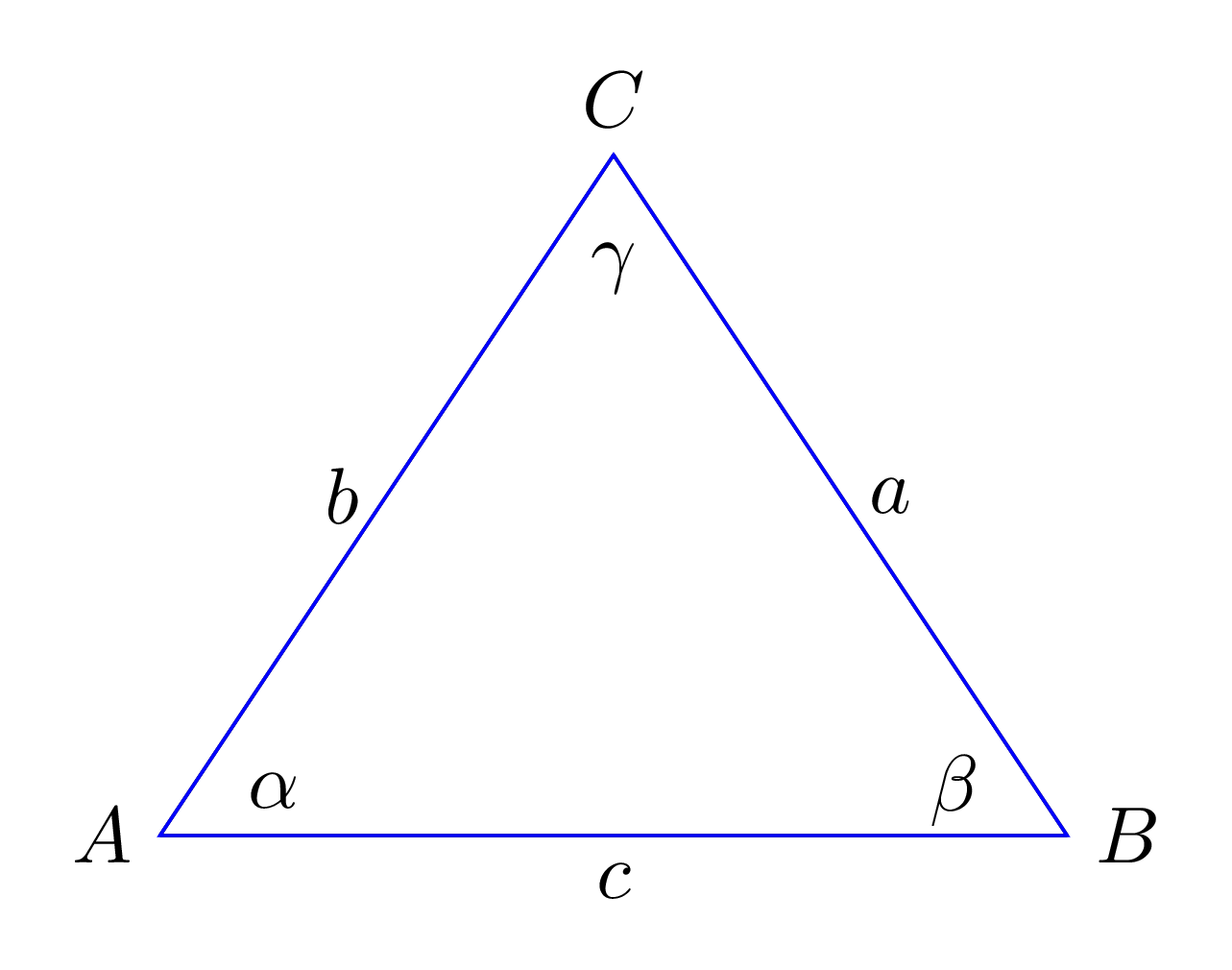

The Cosine Rule is used to relate the lengths of the sides of a triangle as shown in Figure 1.4 to the cosine of one of its angles:

\[ c^2 = a^2 + b^2 - 2ab\cos \gamma \tag{1.3}\]

Where:

a, b, c are the sides of the triangle.
\(\gamma\) is the angle opposite side c.

1.5 Sine Rule

The Sine Rule relates the sides and angles of a triangle in Figure 1.4:

\[ \frac{a}{\sin \alpha} = \frac{b}{\sin \beta} = \frac{c}{\sin \gamma} \tag{1.4}\]

Where:

\(\alpha\), \(\beta\), \(\gamma\) are the angles of the triangle.
a, b, c are the sides of the triangle opposite to angles \(\alpha\), \(\beta\), \(\gamma\) respectively.

1.6 Problem Set

Example 1.1 Two slings of equal length are slung from a horizontal beam and connected to a ring at their lower ends, the slings and beam forming an equilateral triangle. Find the force in each sling when a load of 30 kN hangs from the ring.

Note

In Python, the math module’s trigonometric functions (sin, cos, tan, etc.) expect angles in radians, not degrees. Always convert degrees to radians before using sin, cos, or tan in Python’s math module.

import math

# Given
load = 30  # kN
angle_deg = 60  # each sling makes 60° with the horizontal

# Convert angle to radians
angle_rad = math.radians(angle_deg)

# Vertical equilibrium: 2 * T * sin(angle) = load
T = load / (2 * math.sin(angle_rad))

print(f"Tension in each sling: {T:.4f} kN")

Example 1.2 Two identical slings of equal length are attached to a horizontal beam and meet at a ring from which a 45 kN load is suspended. The slings and the beam form an isosceles triangle in which each sling makes an angle of 50° with the horizontal. Find the force (tension) in each sling.

import math

# Given
load = 45      # kN
angle_deg = 50 # degrees

# Convert angle to radians
angle_rad = math.radians(angle_deg)

# Compute tension
T = load / (2 * math.sin(angle_rad))

print(f"Tension in each sling: {T:.4f} kN")

Example 1.3 Two lifting ropes are connected at their lower ends to a common shackle from which a load of 25 kN hangs. If the ropes make angles of 32° and 42° respectively to the vertical, find the tension in each rope.

import math

# Given
load = 25        # kN
theta1 = 32      # angle opposite T2
theta2 = 42      # angle opposite T1
theta3 = 180 - (theta1 + theta2)  # angle opposite load

# Convert to radians

t1 = math.radians(theta1)
t2 = math.radians(theta2)
t3 = math.radians(theta3)

# Law of sines

T1 = load * math.sin(t2) / math.sin(t3)  # tension in rope 1
T2 = load * math.sin(t1) / math.sin(t3)  # tension in rope 2

print(f"Tension in rope 1: {T1:.4f} kN")
print(f"Tension in rope 2: {T2:.4f} kN")

Example 1.4 The angle between the jib and vertical post of a jib crane is 40°, and the angle between the jib and tie is 45°. Find the force in the jib and tie when a load of 15 kN hangs from the crane head.

import math

# Given
load = 15  # kN
angle_jib_vertical = 40  # degrees
angle_jib_tie = 45       # degrees

# Third angle in the force triangle

angle_tie_load = 180 - angle_jib_vertical - angle_jib_tie  # degrees

# Convert angles to radians for math.sin

angle_jib_vertical_rad = math.radians(angle_jib_vertical)
angle_jib_tie_rad = math.radians(angle_jib_tie)
angle_tie_load_rad = math.radians(angle_tie_load)

# Law of sines

F_jib = load * math.sin(angle_tie_load_rad) / math.sin(angle_jib_tie_rad)
F_tie = load * math.sin(angle_jib_vertical_rad) / math.sin(angle_jib_tie_rad)

# Print results
print(f"Force in jib: {F_jib:.4f} kN")
print(f"Force in tie: {F_tie:.4f} kN")

Example 1.5 The lengths of the vertical post, jib, and tie of a jib crane are 8, 13, and 9 m, respectively. Find the forces in the jib and tie when a load of 20 kN hangs from the crane head.

import math

# Given
P = 8   # post m
J = 13  # jib  m
T = 9   # tie m
W = 20  # load in kN

# Law of cosines

# Angle opposite P (theta_p)
theta_p = math.acos((J**2 + T**2 - P**2) / (2 * J * T))

# Angle opposite T (theta_t)
theta_t = math.acos((J**2 + P**2 - T**2) / (2 * J * P))

# Angle opposite J (theta_j)
theta_j = math.pi - theta_p - theta_t

# Law of sines

F_J = W * math.sin(theta_j) / math.sin(theta_p)  # force in jib
F_T = W * math.sin(theta_t) / math.sin(theta_p)  # force in tie

# Convert angles to degrees

theta_p_deg = math.degrees(theta_p)
theta_t_deg = math.degrees(theta_t)
theta_j_deg = math.degrees(theta_j)

print(f"theta_p = {theta_p_deg:.4f} degrees")
print(f"theta_t = {theta_t_deg:.4f} degrees")
print(f"theta_j = {theta_j_deg:.4f} degrees")

print()
print(f"Force in jib (F_J): {F_J:.4f} kN")
print(f"Force in tie (F_T): {F_T:.4f} kN")

Example 1.6 A ship sailing due east at 18 knots runs into a 3-knot current moving 40° east of north. Find the resultant speed and direction of the ship.

Note

Degrees, Minutes, and Seconds (DMS) notation is widely used in navigation and surveying because decimal degrees alone often lack sufficient precision for small-scale positioning. On Earth’s surface:

1° of latitude ≈ 111 km
1′ (minute of arc) ≈ 1.85 km
1″ (second of arc) ≈ 30 m

Thus, a position given as 40° 26′ 46″ N instantly conveys location to within tens of metres, whereas the equivalent decimal form, 40.44611°, is less intuitive at a glance despite being mathematically identical.

import math

# Given
ship = 18          # knots (due east)
current = 3        # knots
angle_deg = 50     # angle between ship and current in degrees

# Convert to radians

angle_rad = math.radians(angle_deg)

# Law of cosines

R = math.sqrt(ship**2 + current**2 + 2*ship*current*math.cos(angle_rad))

# Law of sines

theta_rad = math.asin((current * math.sin(angle_rad)) / R)
theta_deg = math.degrees(theta_rad)

# Convert direction to degrees, minutes, seconds

deg = int(theta_deg)
minutes_float = (theta_deg - deg) * 60
minutes = int(minutes_float)
seconds = (minutes_float - minutes) * 60

print(f"Resultant speed: {R:.4f} knots")
print(f"Direction: {theta_deg:.4f}° north of east")
print(f"Direction (DMS): {deg}° {minutes}' {seconds:.0f}\" north of east")
